AIR CARGO SCANNER
MYCIS-X30M4
MYCIS-X30M4 Air Cargo Scanner is specially designed for inspection of palletized and large-scale goods. It equipped with 1 unit of dual engery single view accelerator X-ray generators arranged in diagonal from top and provide better vertical view of the screening object. The single-view inspection system creates effective and convenient inspection of tightly packed palletize goods while shortening inspection times…..
Powerful High-Energy Air Cargo Scanner

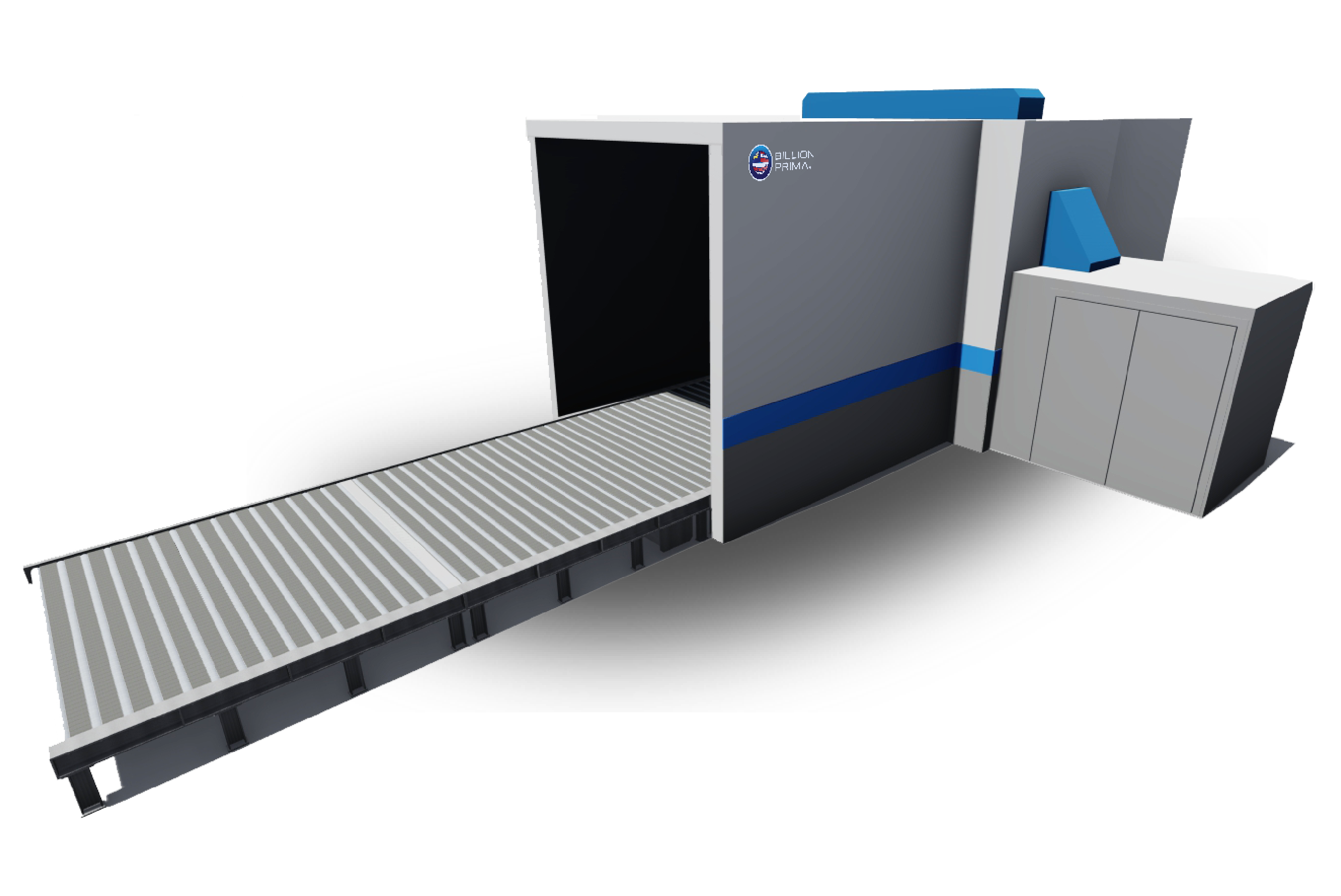

MYCIS-X30M4 Air Cargo Scanner is specially designed for inspection of
palletized and large-scale goods. It equipped with 1 unit of dual engery single view accelerator X-ray generators arranged in diagonal from top and provide better vertical view of the screening object. The single-view inspection system creates effective and convenient inspection of tightly packed palletize goods while shortening inspection times. The scanner meets the requirement and application of pallets screening or LD-3 airfreight containers.

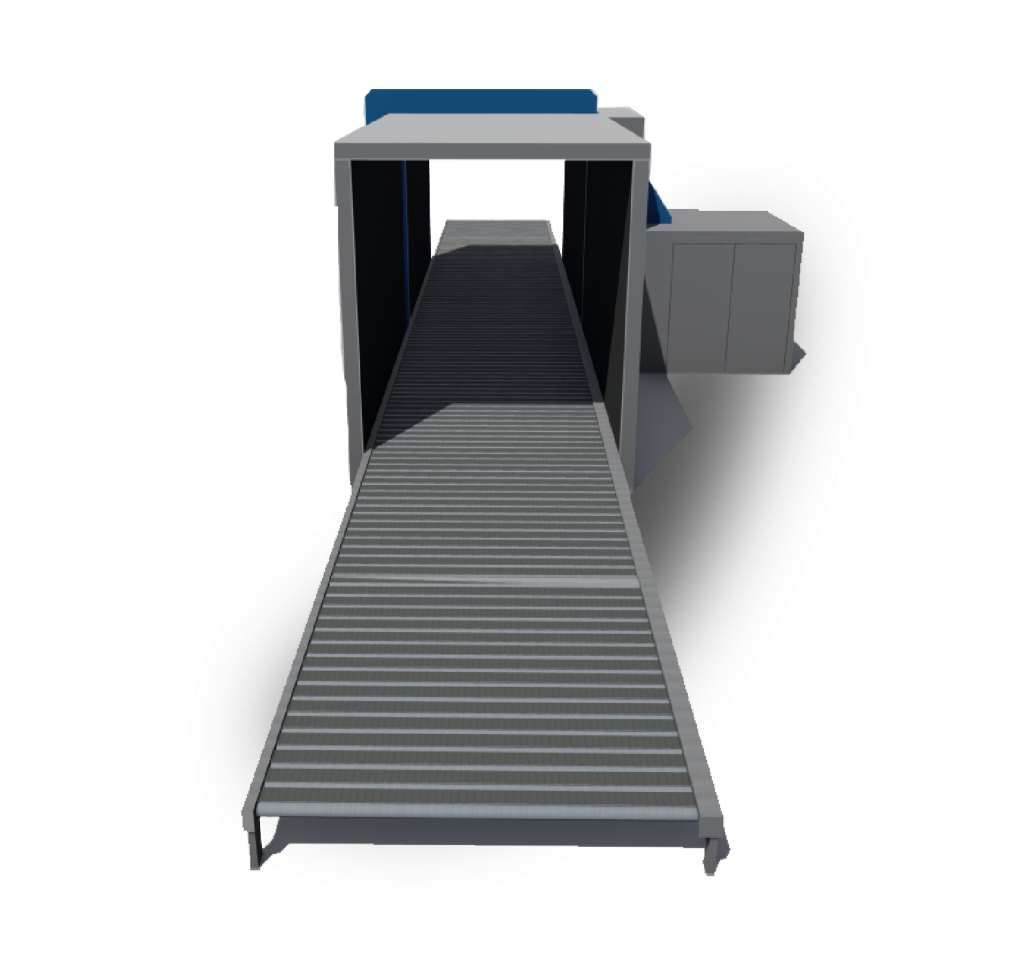

The inspection system designed with lower deck pallet and small pitch
roller conveyors ensure ease the feed and discharge of heavy package without disruption. The innovative technique and image analysis easily support operator to detect contraband accurately, provides effective screening and guarantees high throughput level.
Real-time Material Discrimination
Automatically distinguishes between organic, inorganic, and metallic materials
using dual-view imaging and color coding. Enhances threat detection accuracy,
speeds up inspection, and supports high-throughput air cargo screening.
Greater Clarity Cargo Contents
Equipped with a high-energy X-ray generator, the Air Cargo Scanner penetrates dense and tightly packed cargo far more effectively than the MY-X18200-SVi.This allows customs and security officers to identify hidden threats and verify cargo contents with superior image quality, even in challenging conditions.
Contact us to customize any aspect of your Air Cargo Scanner
GENERAL SPECIFICATION
| Dimension | approx. 22.2 (L) x 6.9 (W) x 4.2 (H) [m] |
| Maximum Scanned Object Dimensions | 5 (L) x 2.5 (W) x 3 (H) [m] |
| Tunnel Size | 11.0 (L) x 2.8 (W) x 3.165 (H) [m] |
SYSTEM PERFORMANCE
| SYSTEM PERFORMANCE | Description |
|---|---|
| Steel Penetration | 240mm |
| Wire Resolution | 1.3mm |
| Spatial Resolution | 2 mm Vertical and Horizontal |
| Material Discrimination | Yes - Autothreat Detection & Real Time Discrimination |
| Display | Real-time display with 4 color imaging | At least save up to 1 million record |
OPERATING FEATURES
| Features | Description |
|---|---|
| X-ray generator | 4/2MeV Dual Energy Accelerator |
| Crew | One inspector |
| Scan Modes | Scans objects loaded onto conveyor |
| Scan Direction | Default 1 direction | bidirectional on request (optional) |
| Scanning Speeds | 0.3 m/second; optional 0.4 m/second |
| System Throughput | Up to 30 pallets per hour |
| Start-up Time | 10s |
| Power Requirements | 3 Phase 380 V / 40kVA |
| Cooling System | Using Fan Cooling System |
