Weigh In Motion

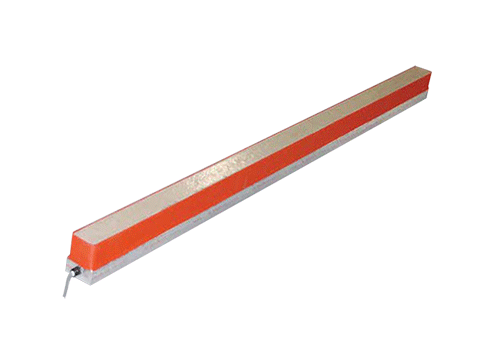

Strain gauge technology is used in static weighing for direct weight enforcement and is accepted as the most accurate and reliable means to weigh a vehicles. Intercom’s strips sensors integrate the same strain gauge technology incorporated into a compact strip for accurate WIM application. Offering the lowest cost of ownership of any precision WIM sensor, the price, durability, and longevity of Intercomp sensors deliver performance to rely on

Partnership with



TechnologyStrain gauge load cell with software
Operation ModeDrive-through of constant speed up to 100 km/hr
Weight Limit0 - 100 tons. Controlled with software
MaintenanceFree maintenance
Installation Time2 - 3 days
DimensionWidth: 70 mm
Height: 76 mm
Weight(1.5 m sensor): 22 kg
Weight(1.75 m sensor): 28 kg
Weight(2.0 m sensor): 32 kg
Operating Temperature Range-40C to 80C
CableType: 6 Conductor Cable with Shield ± Excitation, ±Signal, ±Sens
Lenght: 40m or 100m - Custom Length Available per Customer Request
Recommended Excitation5 - 10V
Ingress Protection RatingIP68
Sensitivity (Nominal)0.75 mV/V @ 6000lb
(0.825 mV/V @ 3000kg
Ratiometric mVV output
Output Variance Over the Length of Sensor± 0.5% of load
Linearity± 0.1% FSO
Hysteresis±0.2% FSO
Temperature Coefficient of Sensitivity±0.0036% of load/C
Bridge Resistance170 ohms
Accuracy Estimation2 sensors: ±10% - 15% from actual
4 sensors: ±7% - 10% from actual
6 sensors: ±5% - 7% from actual
8 sensors: ±3% - 5% from actual


Static WeightWeight-In-Motion(WIM)LS-WIM
TechnologyMechanical Load CellStrain gauge load cell with softwareWeight-In-Motion Scale System
Operation ModeComplete stopDrive-through of constant speed up to 129 km/h (certified), others WIM product only up to 80km/hDrive-through of constant speed up to 10 km/h
Weight Limit2 ton < weight specs < 80 ton0 ~ 100 ton. Controlled with Software24 ~ 40 ton per axle
MaintenanceRegular MaintenanceZero MaintenanceRegular Maintenance
Weight InformationGross Weight OnlyGross Weight; Speed; Axis number; Weight per AxisGross vehicle weight; Axle weights; Group weights, and Axle spacing
Error ReportN/ASoftware based ReportSoftware based Report
AccuracyAccurateAccurate in 5% from static weightAccurate
Installation TimeMore than 1 month2 - 3 days2 - 3 days
FootprintBigVery smallSmall

MyWIM successfully installed at Kulwaru, Jogjakarta, Indonesia

MyWIM successfully installed at Westport Export and Tanjung Kupang Import
