CLV-300

The CLV-300 is a vehicle inspection via drive-through portal designed to efficiently screen cars, vans, and minibuses. It allows operators to identify threats in nearly every space including their chassis, for explosives and smuggled goods.

CLV-300 enables the screening of up to 100 vehicles per hour, making it an ideal solution for high-traffic checkpoints
with a focus on high image quality and user-friendly operationThe system features integrated U-shaped detector lines and gradual ramps enable seamless operation whileminimizing infrastructure requirements.

CLV-300 is to design for adaptable to specific needs and it offers acost-effective solution for protecting critical infrastructure such as government buildings, military checkpoints, and
border crossings.

Car Inspection Portal

Advantages

High Image Quality

(BnW & Colour images)

High Steel Penetration

Can penetrate up to 65mm steel

Safe To Scan

Safe to scan via drive - through

Fully Automated Operation

Fully automated scanning system which requires no manual operation

High Throughput

Screening of up to 100 vehicles per hour,

Low Radiation Dose

< 0.1 µSv / inspection at 8km/h . 5mph

General Specifications

certified by sirim
General SpecificationDescription

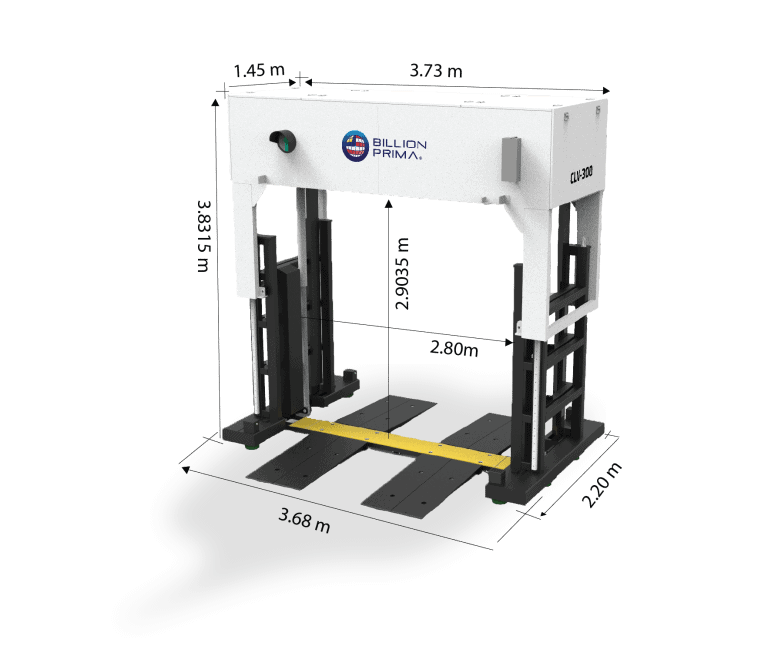

System Dimensions [W x H x L]3.68 m X 3.83 m X 2.20m
Max.Vehicle Size [W x H x L]2.5m X 2.7m X 7.0m
Scanning Speed8km/h | 5 mph, throughput 100 vehicles/h
Penetration SteelStandard: 60mm | typical : 65mm
Resolution(wire detectability)Standard: 1mm | typical : 0,75mm
Anode voltage. cooling300kV cp , hermetically sealed oil bath
Beam DirectionFrom top to bottom (symmetrical)
Footprint [W x L x H]10m x 40m x 10m (Customizable)
X-Ray Dose< 0.1 µSv / inspection at 8km/h . 5mph || < 0.2 µSv / inspection at 4km/h. 2.5 mph

Image Generate System

* Comply to ANSI N42.46-2008 and IEC62523

FeaturesDescription
X-ray ConverterU-shaped detector line, high resolution(2.5 mm pixel width)
Data Storage4096 grey levels stored
Image PresentationB/W, color
Digital Video Memory1280 x 1024/24 bit
Image Evaluation FunctionsVARI-MAT ,0²,OS,HIGH,NEG,electronic zoom; step-less enlargement up to 64 times
Monitor24" flat Panel LCD monitor
Edge EnhancementYes

Radiation Protection Safety

Radiation Safety - In compliance with ANSI 43.17, WHO, ICRP-60 13-17,EU & US guidelines
- Ongoing radiation monitoring , video surveillance, exclusion zone according to local regulations.
CE-labellingIn compliance with guidelines 2004/108/EC,2006/42/EC,2006/95/EC

Installation Data

Operating / Storage Temperature -20°-50°C / -23°-+60°C | -4°F-122°F / -9°F-140°F
Power Supply400 VAC ±15% , 3- PHASE 50Hz / 60Hz ±3Hz
Humidity10% - 90% (not condensing)
Power Consumptionapprox.8 kVA
Protection ClassIP 44
