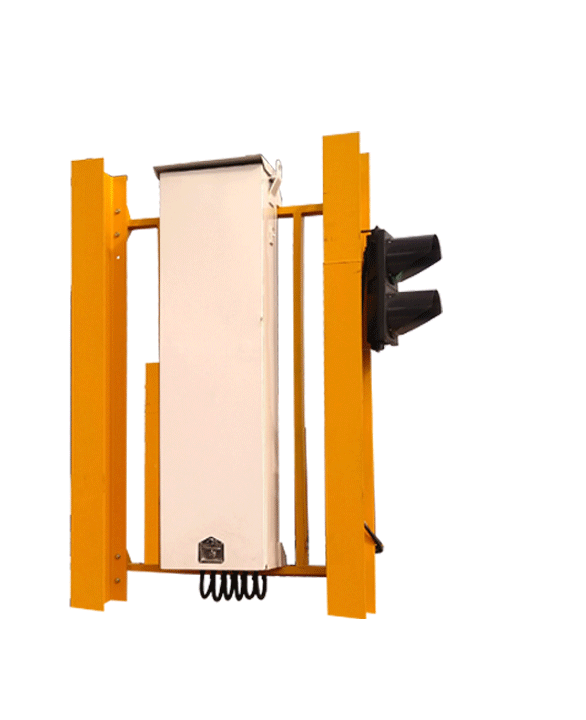

MyRPM is a Radiation Portal Monitoring System developed by Malaysian Company. Passive radiation detection devices is used for the screening of individuals, vehicles, cargo or other vectors for detection of illicit sources such as at borders or secure facilities.
| Specification | Description |
|---|---|
| Dimension | 2 pillar per lane, each dimension: Height: 3663 mm Width: 1040 mm Depth: 750 mm including steel structure |
| Compliance | Performance - ANSI 42.35 Data Protocol - ANSI 42.42 |
| Data Output | Provide alarm classification, alarm status, gamma count rates, neutron count rates and background count rates directly to third party user interfaces |
| Gamma Detector | 25.4 litre (38.5 x 122.3 x 5.4) cm plastic scintillator (PVTs) with integrated multichannel analyzer (MCA). The detector provide gamma radiation sensitivity in the energy range from 20keV to about 3 MeV, ensuring static efficiency and dynamic sensitivity in the whole detection range |
| Gamma Sensitivity | Approx. 150000 cps or µSv/h for Cs-137 |
| Neutron Detectors | 87.2 litre (12.7 x 31.8 x 215.9) cm replace non He-3 material with 6LiF/ZnS(Ag) material. The entire assembly is enclosed within high density polyethylene moderator box |
| Neutron Sensitivity | Min. 2.5 cps/ng of moderated Cf-252 at 2 meters |
| Alarm Categorization | Alarm categorization allows optimal threat detection and minimal false alarm rate |
| Peripherals | Occuancy sensors; optional: CCTV, OCR, LPR, audible/visual alarm annunciation |
| Operation Temperature | -30C - 55C (down to -40C optional) |
| Humidity | up to 99% |
| Ingress Protection | IP56 (other IP levels possible) |
Two (2) gamma detectors: one gamma detector on each side. This model does not have a neutron detector but is suitable for civilian monitoring with a passenger vehicle. Suggested installations for this model include pedestrian scanning, hospitals (nuclear medicine departments), airports, schools and university labs.
Four (4) gamma detectors: two gamma detectors on each side. This model does not have a neutron detector but is suitable for institutions or agencies that use heavy vehicles. Suggested installations for this model include radionuclide production labs, facilities for the radiation industry, and nuclear research facilities
Two (2) gamma detectors with two (2) neutron detectors: one gamma detector and one neutron detector on each side. This model includes a neutron detector and is suitable for places that transport goods to prevent illegal trafficking of radiation sources. Suggest installations include seaports and scrapyards.
Four (4) gamma detectors with two (2) neutron detectors: two gamma detectors and one neutron detector on each side. This model includes neutron detectors and is suitable for places that use heavy vehicles to transport minerals. Suggested installations include rare earth ming sites.
Features In Each Model
| Specification | MyRPM G2 | MyRPM G4 | MyRPM G2N2 | MYRPM G2N4 |
|---|---|---|---|---|
| Gamma Detector | Yes (One Each Side) | Yes (Two Each Side) | Yes (One Each Side) | Yes (Two Each Side) |
| Neutron Detector | No | No | Yes (One Each Side) | Yes (One Each Side) |

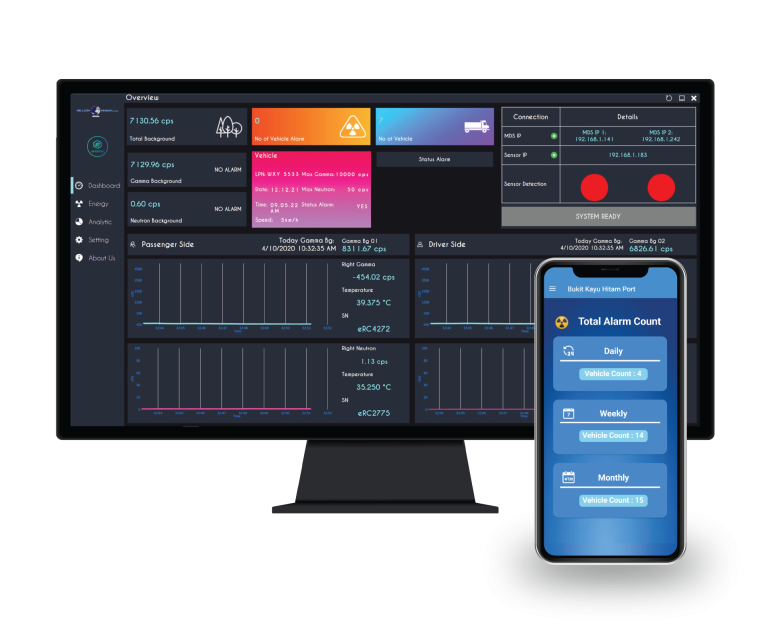

| Desktop Software | Yes | Yes | Yes | Yes |
| Mobile Application | Yes (with Addon) | Yes (with Addon) | Yes (with Addon) | Yes (with Addon) |
Addons
| Mobile Connection & Wireless System |
| Solar Energy & Battery Backup System |
| Server & Cloud Data Storage |
