MYCIS M4

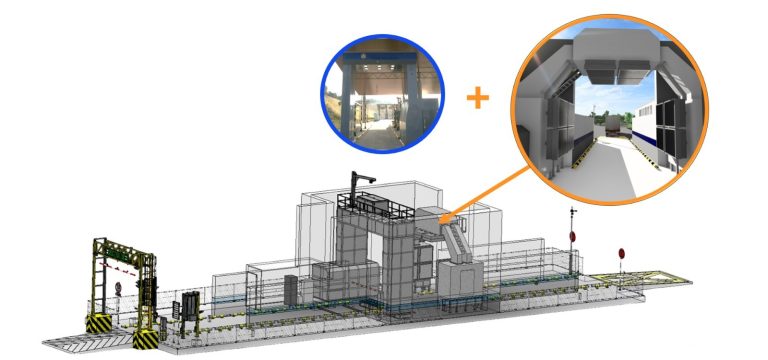

MYCIS-M4 Cargo and Vehicle Inspection is a combination of high energy Transmission and Backscatter technology which multi-view drive-through portal designed is suitable to perform 100% screening at sea-port and border. This advance model equipped with the Artificial Intelligence.

The high energy accelerators located at top and side view of the portal is perfect to screen the high dense cargo which penetration up to 350mm and steel penetration of backscatter up to 7mm.

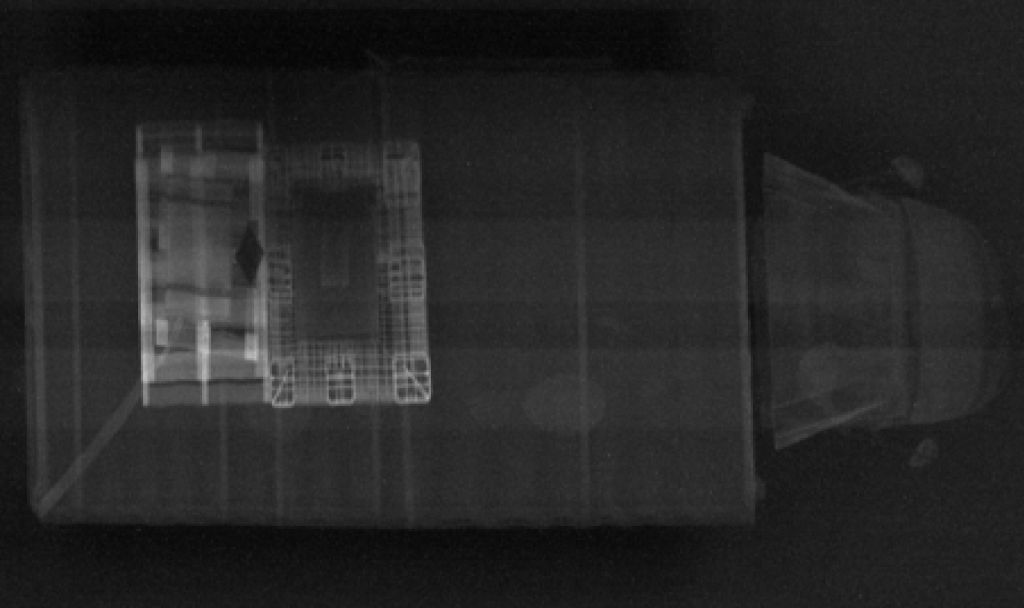

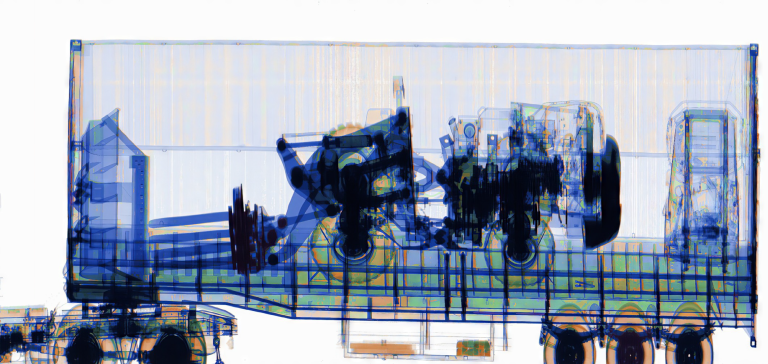

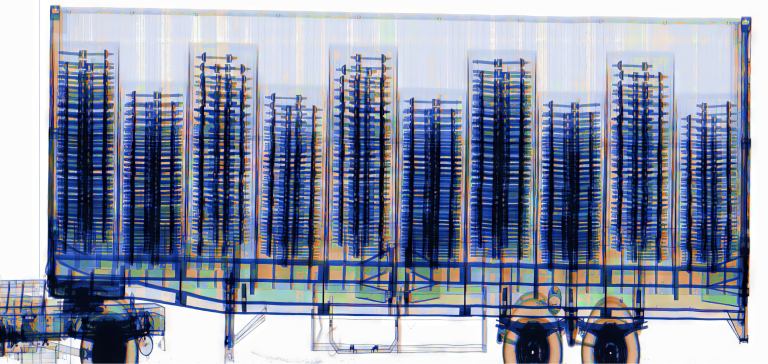

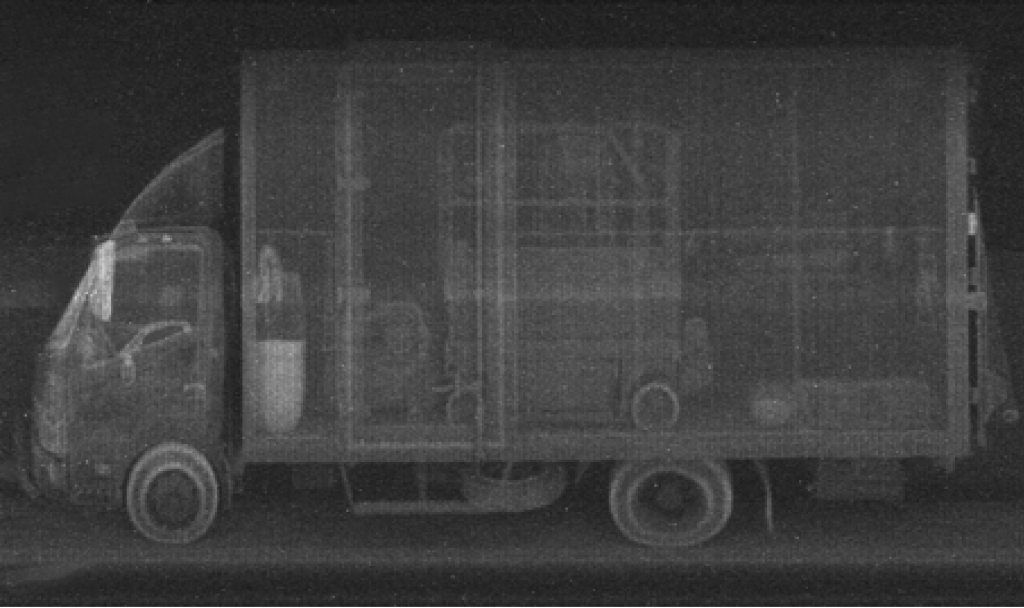

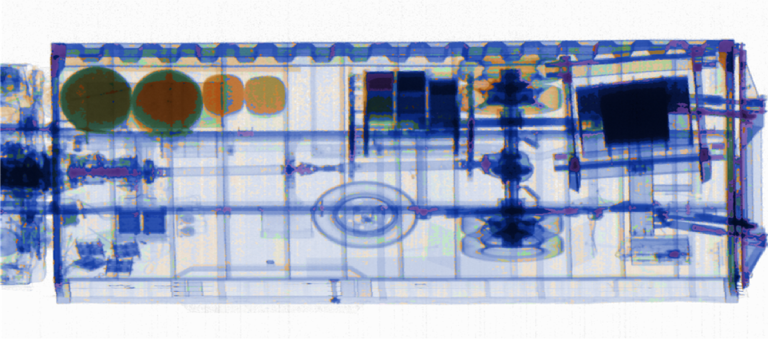

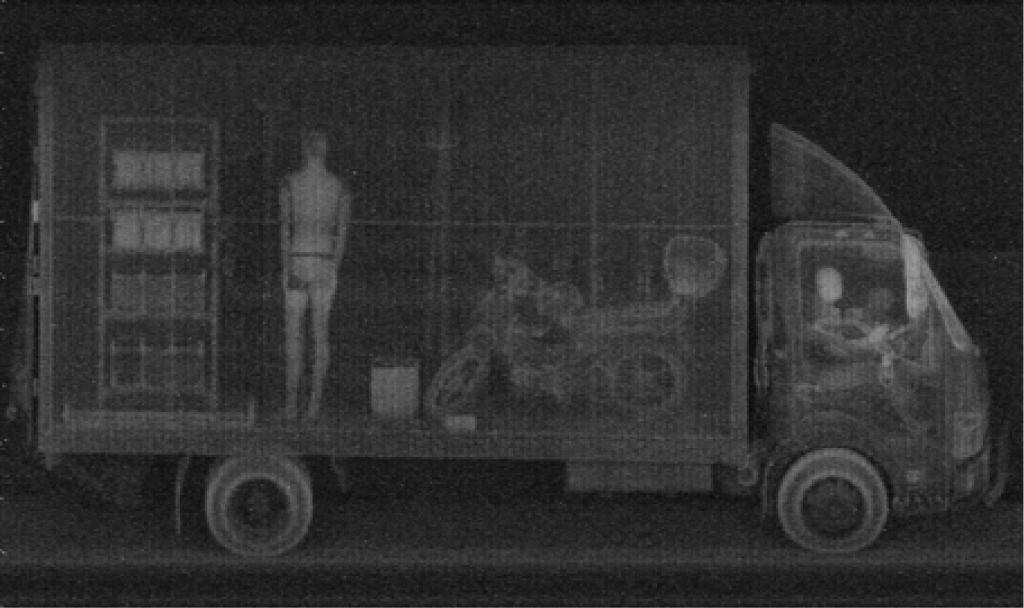

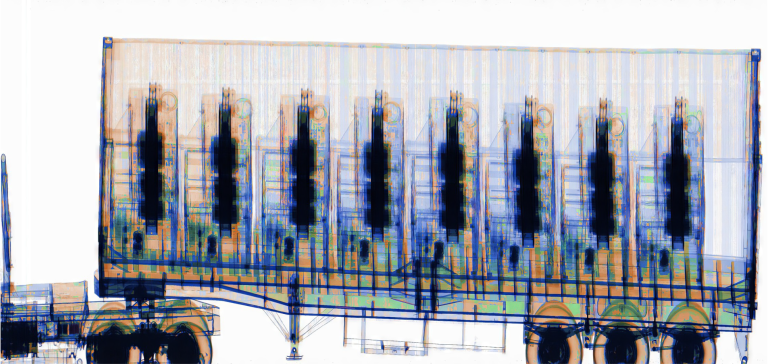

MYCIS-M4 provides up to 5 images including 2 transmission image from top and side view;3image of backscatter which from top, left and right.

Three Sided Backscatter Scanning Equipment

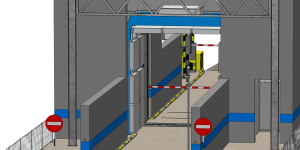

Front View

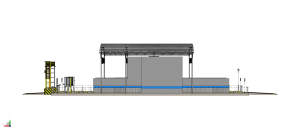

Side View

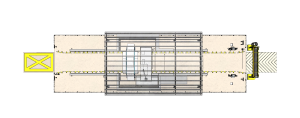

Top View

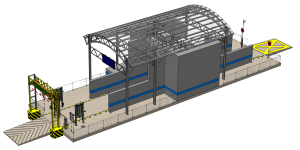

Incline Side View

Product Category

Cargo Scanner
Baggage Scanner
Radiation Portal Monitoring
Optical Character Recognition
Weight-In-Motion
Infrared Temperature and Metal Detector
Non-Destrutive Test

Advantages

Real Time Material Discrimination​

Metal | Heavy Metal | Organic | Inorganic

Self-Diagnostic System

Determine the X-ray efficiency

Safe To Scan

Safe to scan via drive - through

Power By AI

Identify Liquid tank, Gas Tank, Liqueur, etc.

High Throughput

Up to 150 standard 40’ ISO cargo containers per hour

Low Radiation Dose

Absorbed dose per scan as low as 0.1 μSv/scan

High Steel Penetration

Can penetrate up to 350mm thick steel

Customizable

Able to customize according to user's requirements

High Image Quality

(Grayscale,BnW, pseudocolor & Colour images)

Fully Automated Operation

Fully automated scanning system which requires no manual operation

General Specifications

certified by sirim
General SpecificationDescription
Type of Non-Intrusive Inspection SystemFixed portal type
Type of X-Ray AcceleratorSide and diagonal view of dual energy Betatron (upgradable to 4 energy)
Operation ModeVehicle drive-through with full scan mode or cabin mode
Scanning SpeedLess than 20 seconds per scan
Inspection ThroughputAverage inspection throughput rate more than 150 standard 40’ ISO cargo containers per hour
Vehicle Transit Speed5-15 km/hr(optional), can reach up to 30 km/hr
System Warm Up TimeLess than 5 Minutes
Footprint [W x L x H]10m x 40m x 10m (Customizable)
Tunnel Dimension [H x W]5m x 4.4m (Customizable)
Max. Height of Scanningapprox. 5.2m above ground (Customizable)
Min. Height of Scanningapprox. 0.35m above ground
Nominal Energy (MeV)7.5/4 MeV, Pulsed Radiator (400 Hz)
Steel PenetrationTop View Steel (320mm)
Side View Steel (350mm)

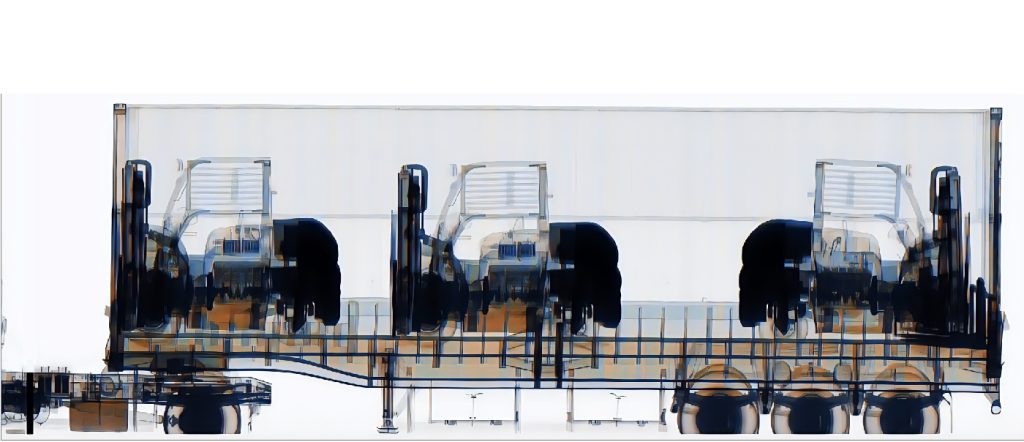

X-Ray Imaging Software

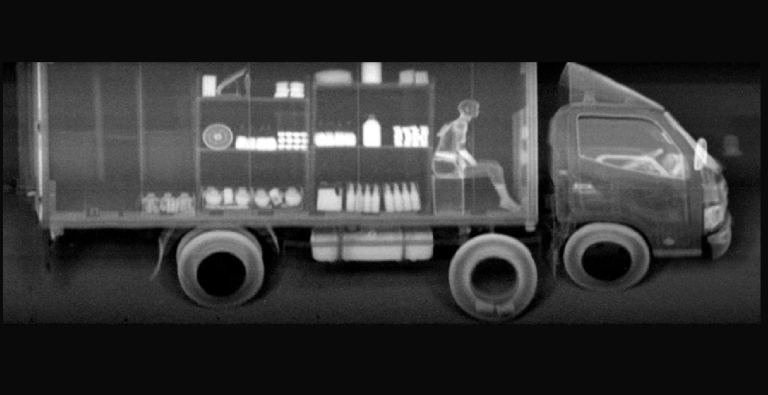

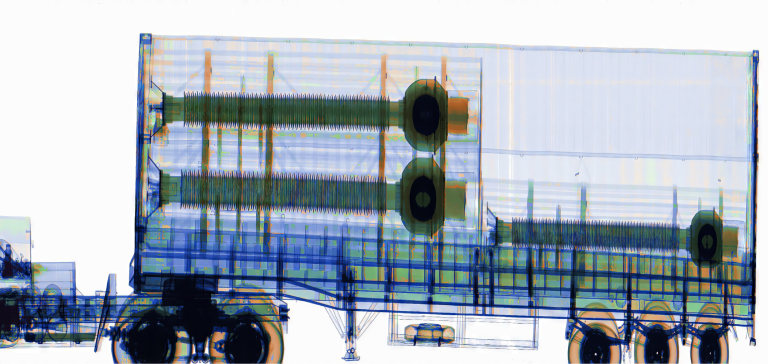

Backscatter_Transmission-04

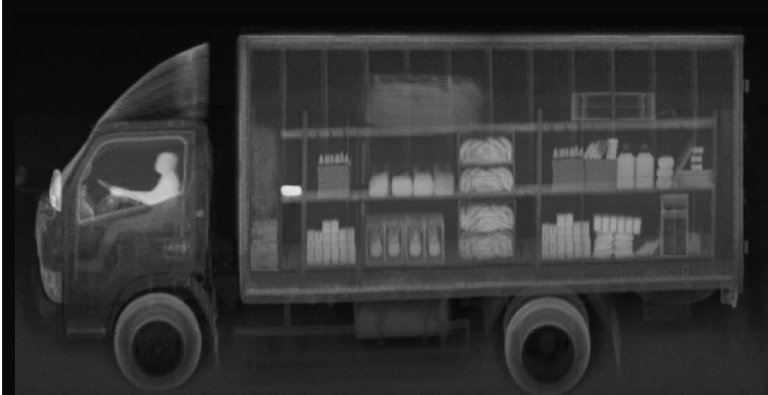

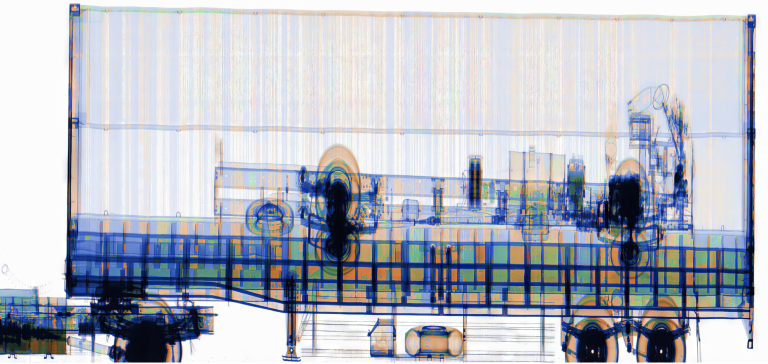

Backscatter_Transmission-03

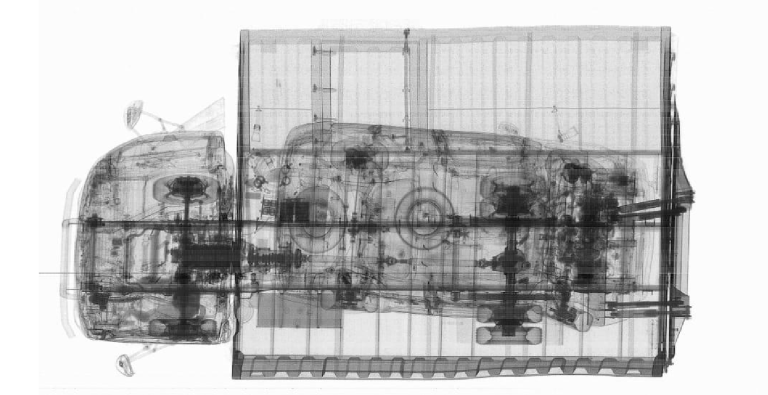

Backscatter_Transmission-02

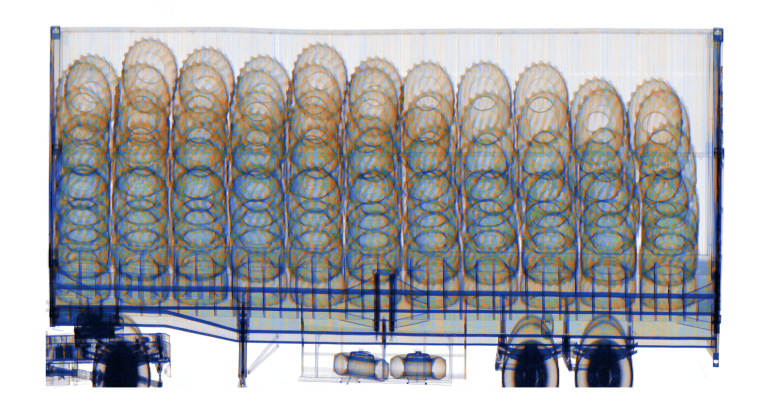

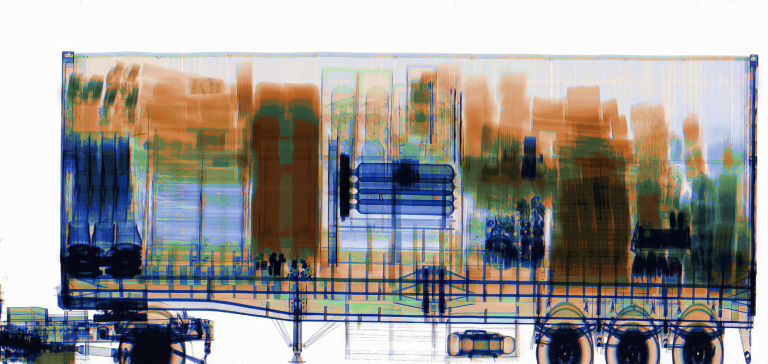

Backscatter_Transmission-01
Previous
Next

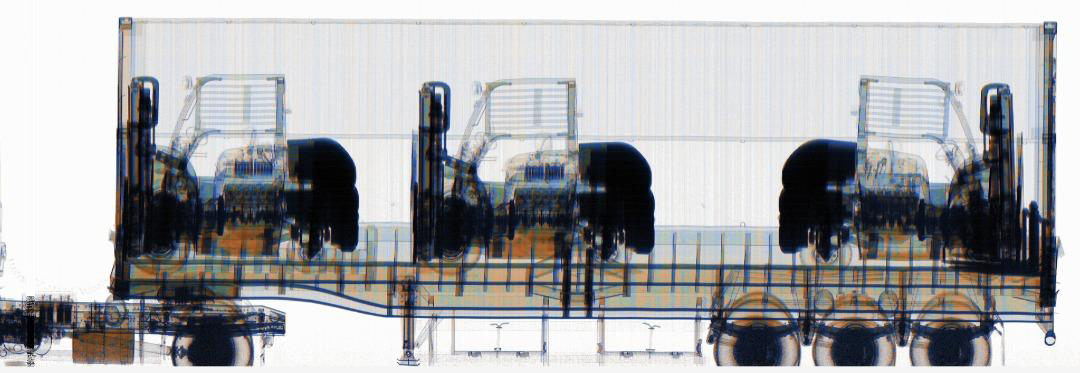

Before

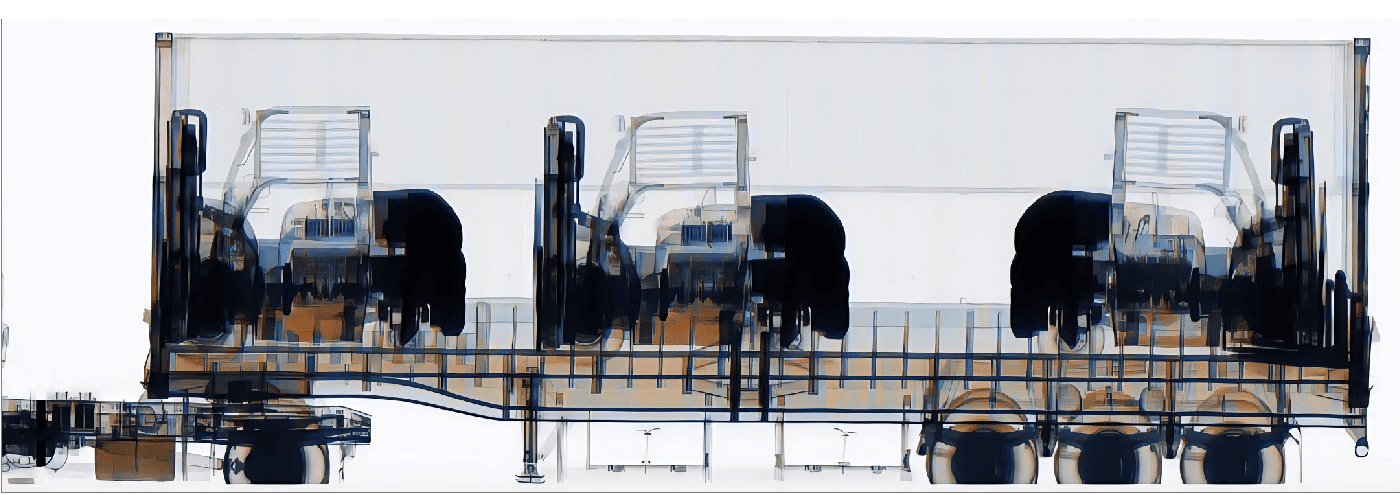

After

* Comply to ANSI N42.46-2008 and IEC62523

FeaturesDescription
Spatial Resolution4mm vertical, 3mm horizontal
Contrast Sensitivity1% behind 100mm steel
2% behind 150mm steel
2% behind 200mm steel
Wire Detectability1.3mm wire in air
Pseudo ColorYes, at least 4 colors
ZoomAt least 16x Zoom
Measurement Length/AreaYes
Edge EnhancementYes
Metal DiscriminationYes (Organic, Inorganic, Metals and Heavy Metals)
X-Ray DetectorDual Row Dual energy

Radiation Protection Safety

Absorbed Dose Per Scan <=0.1 μSv （Speed:5km/h)*
Operator Absorbed Dose Rate<=0.5 μSv/h
Radiation Safety IndicatorsComplies with international IEC 62463-2010 and US ANSI N43.17-2009 standards

System Performance

X-Ray Source 225keV Metal ceramic X-Ray tube
AlignmentFlying Point Device
Scanning Height3.6m*
Throughput Rate200 units of 17m container vehicles per hour
Perfect Scanning Distance1.5m
Scanning Speed0.5~10km/h
Steel PenetrationUp to 7mm
