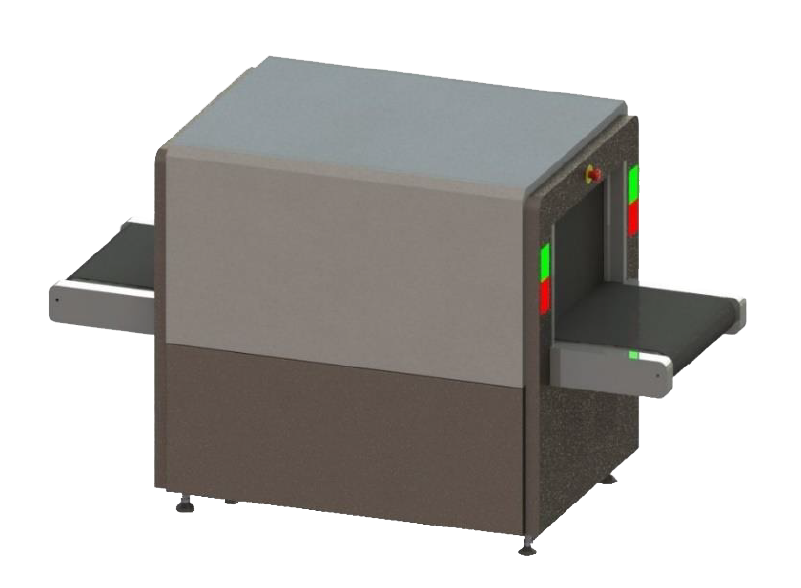

X-Ray Baggage Scanner (MY-6040-SVi) is a newly designed, versatile and compact x-ray screening system with high definition image and real-time monitoring. The flexible and modular design, making it to be an excellent inspection security for Customs, hotels, embassies, convention centers, train or subway stations and government buildings.
| General Specification | Description |
|---|---|
| Dimensions | 2114 (L) x 958 (W) x 1264 (H) [mm] |
| Weight | approx. 500 kg |
| Tunnel Size | 610 (W) x 400 (H) [mm] |
| Conveyor Height | approx. 707 mm |
| Conveyor Speed | 0.2 m/s |
| Conveyor Load | 160 kg |
| Dose Per Inspection | < 1.35 μSv |
| Leakage | < 2 μSv/H |
| Film Safety | Guaranteed ISO 1600 / DIN33 |
| X-Ray Generator | Description |
|---|---|
| Anode Voltage | Operating at 150kV (adjustable from 100 to 160 kV) |
| Tube Current | 0.7mA (adjustable from 0.3 to 1.25 mA) |
| Maximum Output Power | 200W |
| Cooling / Duty Cycle | Sealed Oil Cooling / 100% |
| Orientation | Diagonal |
| Image Performance | Description |
|---|---|
| Steel Penetration | 39 mm steel |
| Wire Resolution | 40 AWG (0.08 mm metal wire) |
| Image Resolution | 1280 x 1024 / 24 bits |
| Monitor | Flat panel LCD monitor |
| Installation Data | Description |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95% (non-condensing) |
| Working Voltage | AC 220V ± 10% |
| System Sound Level | < 60dB |
| Power | 0.7 kVA |
Detect contraband accurately
Provide effective screening
Guarantees high throughput level
