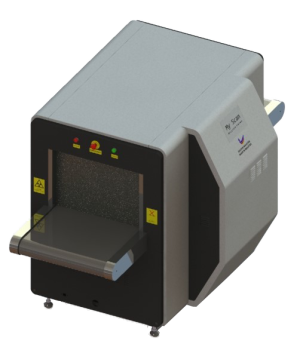

X-Ray Baggage Scanner (MY-6040-DVi) is an advanced checkpoint X-ray security inspection system with dual view technology. By generate two separate simultaneous image from perpendicular orientations, it can automatically detect the solid and liquid explosives with highlighted images. The flexible and modular design, making it to be an excellent inspection security for Customs, hotels, embassies, convention centers, train or subway stations and government buildings.
| General Specification | Description |
|---|---|

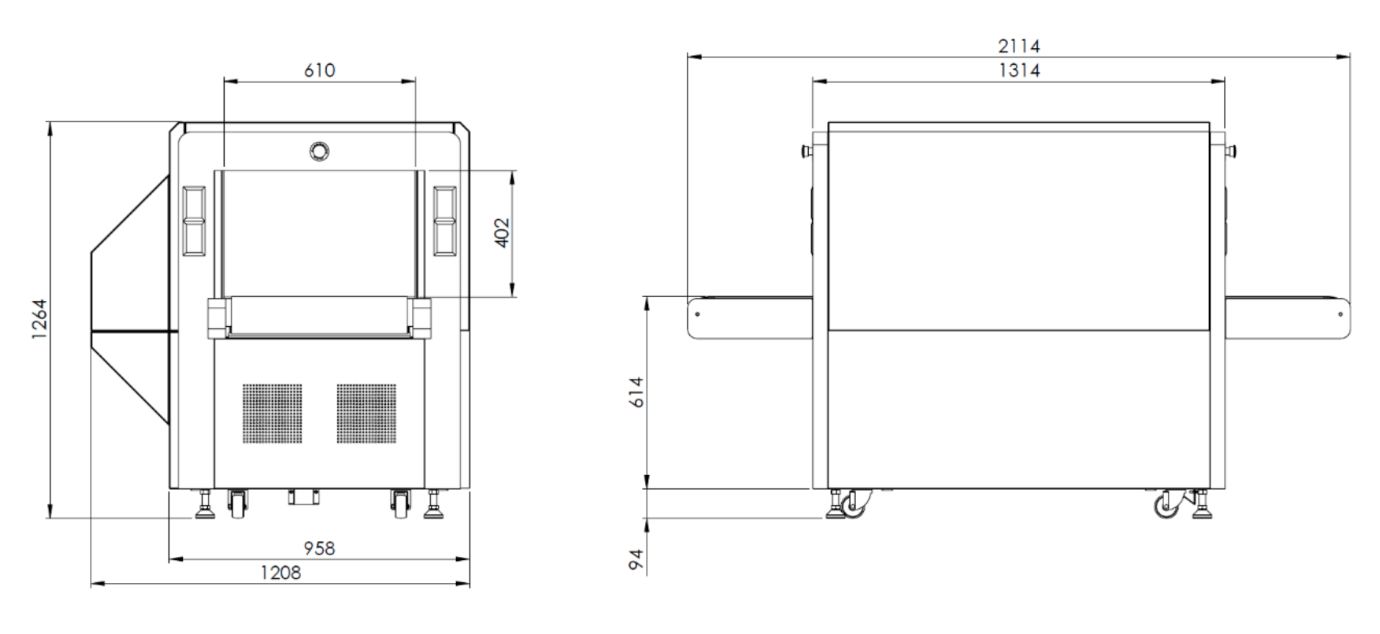

| Dimensions | 2114 (L) x 1208 (W) x 1264 (H) [mm] |
| Weight | approx. 900 kg |
| Tunnel Size | 610 (W) x 400 (H) [mm] |
| Conveyor Height | approx. 707 mm |
| Conveyor Speed | 0.2 m/s |
| Conveyor Load | 160 kg |
| Dose Per Inspection | < 4.6 μSv |
| Leakage | < 2 μSv/H |
| Film Safety | Guaranteed ISO 1600 / DIN33 |
| X-Ray Generator | Description |
|---|---|
| Anode Voltage | Operating at 160kV (adjustable from 100 to 160 kV) |
| Tube Current | 0.8mA (adjustable from 0.3 to 1.25 mA) |
| Maximum Output Power | 200W |
| Cooling / Duty Cycle | Sealed Oil Cooling / 100% |
| Orientation | Horizontal and vertical (2 generators) |
| Image Performance | Description |
|---|---|
| Steel Penetration | 30 mm steel |
| Wire Resolution | 40 AWG (0.08 mm metal wire) |
| Image Resolution | 1280 x 1024 / 24 bits |
| Monitor | Flat panel LCD monitor |
| Installation Data | Description |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 50°C |
| Humidity | 5% to 95% (non-condensing) |
| Working Voltage | AC 220V ± 10% |
| System Sound Level | < 70dB |
| Power | Max. 1.2 kVA |
Detect contraband accurately
Provide effective screening
Guarantees high throughput level
