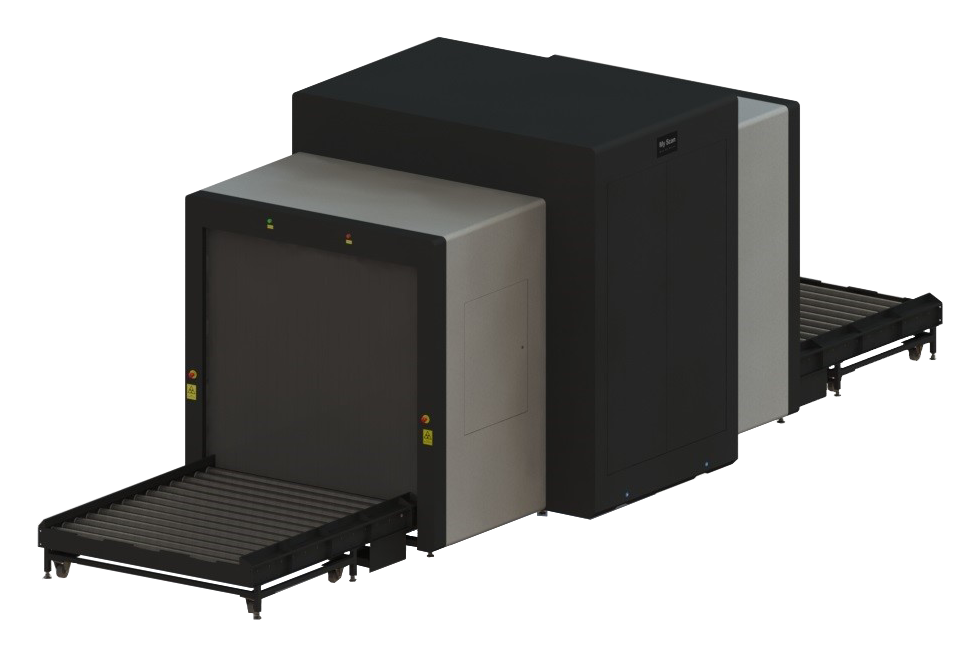

MY-18200-DVi

The MY-18200-DVi is specially designed for inspection of palletized and large-scale goods. It equipped with two independent compact medium energy 200kV X-ray generators arranged in perpendicular orientation and able to provide vertical and horizontal view of the screening object. Creates effective and convenient inspection of tightly packed palletize goods while shortening inspection times. The scanner meets the requirement and application of pallets screening and LD-3 airfreight containers. Ensure ease the feed and discharge of heavy package without disruption.

Features

Specifications

General Specification	Description
Dimensions	approx. 7200 (L) x 3500 (W) x 3500 (H) [mm]
Weight	approx. 7000 kg
Tunnel Size	1800 (W) x 1800 (H) [mm]
Max. Object Size	1750 (W) x 1750 (H) [mm]
Conveyor Type	Small pitch roller conveyor
Conveyor Height	approx. 361 mm
Conveyor Speed	Standard 0.2 m/s
Conveyor Load	Standard 2000 kgs evenly distributed
Dose Per Inspection	approx. 2 μSv
Film Safety	Guaranteed ISO 1600 / DIN33

X-Ray Generator	Description
Anode Voltage	Operating at 200kV
Tube Current	2mA
Cooling / Duty Cycle	Sealed Oil Cooling / 100%
Orientation	(2 generators) View 1: Diagonal from bottom View 2: Diagonal from side

Image Performance	Description
Steel Penetration	Standard 50mm / Typical 52mm
Wire Resolution	Standard 38 AWG / Typical 40AWG
Image Resolution	1280 x 1024 / 24 bits
Image Presentation	B/W, color
Monitor	Flat panel LCD monitor

Installation Data	Description
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Working Voltage	220 VAC, 50Hz/60Hz
