MY-100100-SVi

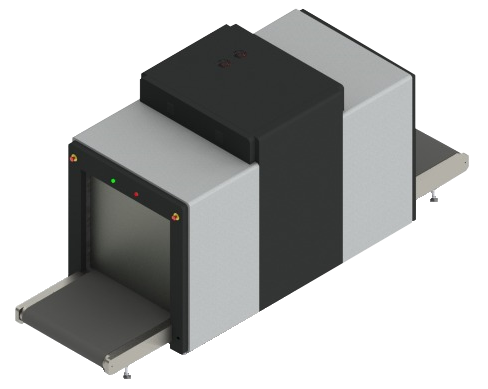

X-Ray Baggage Scanner (MY-100100-SVi) is effective and convenient inspection solution for sites where requires high security screening from large parcels to small cargo as well as baggage.
Previous
Next
Features
- Material Classification
- Image Recall
- Baggage Counter
- Date and Time Display
- Real-time Image Processing
- High Image Resolution
- User ID-Number
- Multi-level User Management
- System Work Time Counter
- X-Ray Work Time Counter
- Image Store System
Image Processing Functions
- Color / Black & White
- Multi-energy
- Organic / Mineral Stripping
- Edge Enhancement
- Supper Enhancement
- High Penetration
- Low Penetration
- Pseudo Color
- Grey Level Scanning
- Hi-Spot
- Smooth & Stepless Zoom
- High Density Alarm
- Image Recall
Specifications
| General Specification | Description |
|---|---|

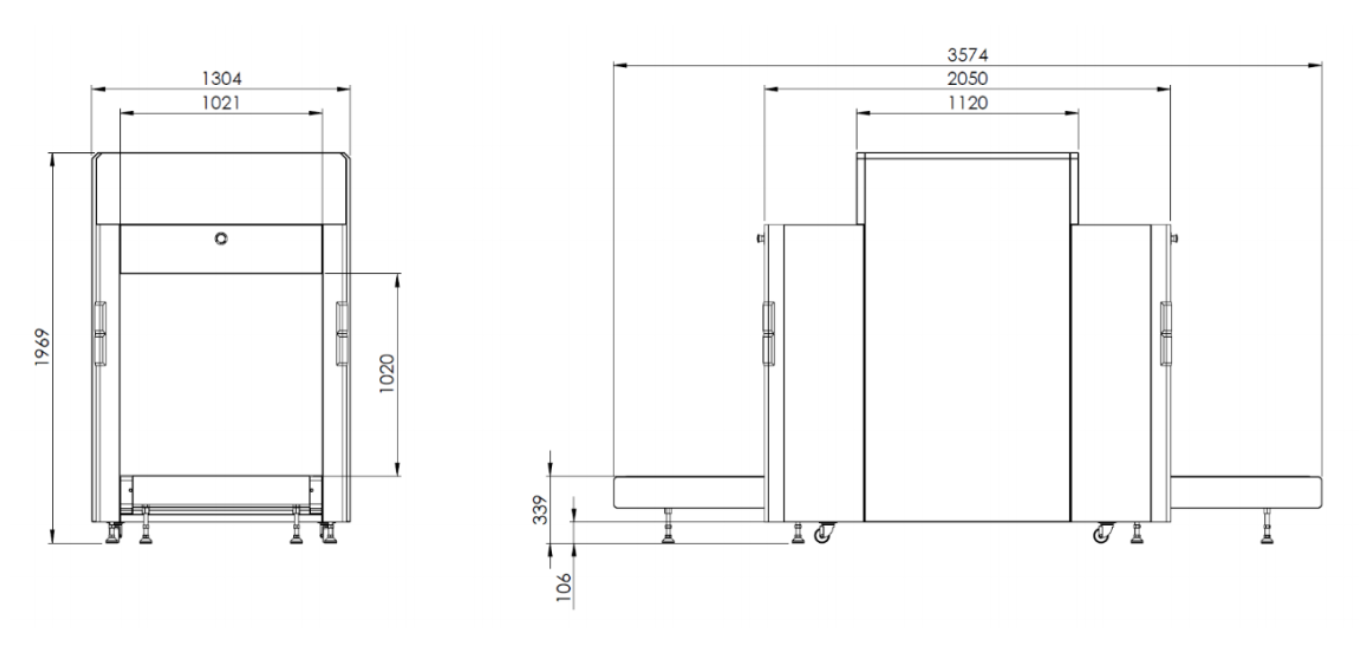

| Dimensions | 3574 (L) x 1304 (W) x 1969 (H) [mm] |
| Weight | approx. 950 kg |
| Tunnel Size | 1020 (W) x 1020 (H) [mm] |
| Conveyor Height | approx. 530 mm |
| Conveyor Speed | 0.2 m/s |
| Conveyor Load | 200 kg |
| Dose Per Inspection | < 1.35 μSv |
| Leakage | < 2 μSv/H |
| Film Safety | Guaranteed ISO 1600 / DIN33 |
| X-Ray Generator | Description |
|---|---|
| Anode Voltage | Operating at 160kV (adjustable from 100 to 160 kV) |
| Tube Current | 0.8mA (adjustable from 0.3 to 1.25 mA) |
| Maximum Output Power | 200W |
| Cooling / Duty Cycle | Sealed Oil Cooling / 100% |
| Orientation | Diagonal |
| Image Performance | Description |
|---|---|
| Steel Penetration | 30 mm steel |
| Wire Resolution | 36 AWG (0.13 mm metal wire) |
| Image Resolution | 1280 x 1024 / 24 bits |
| Monitor | Flat panel LCD monitor |
| Installation Data | Description |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 50°C |
| Humidity | 5% to 95% (non-condensing) |
| Working Voltage | AC 220V ± 10% |
| System Sound Level | < 70dB |
| Power | Max. 1.0 kVA |
Advantages
Accurate
Detect contraband accurately
Effective Screening
Provide effective screening
High Throughput Level
Guarantees high throughput level
